Fiber Optic Patch Cords
- TEL: +86 519-86221538
- Skype: +86 15995090105
- E-mail: william@linketchina.com

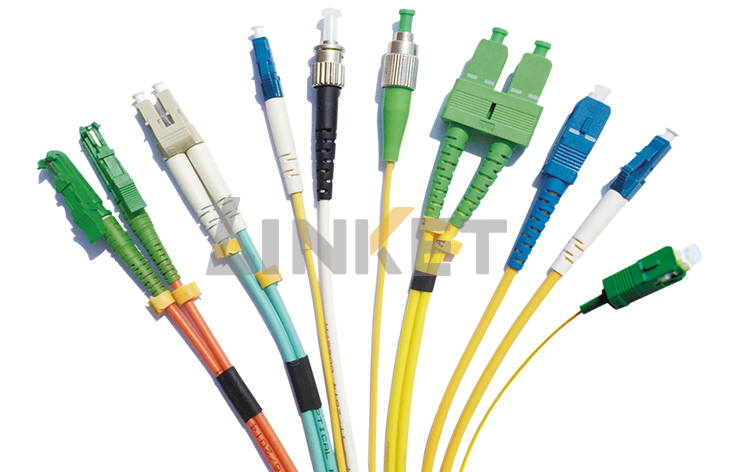

Fiber optic patch cord and pigtail can be classified to FC,SC,LC,MU and ST. With the high-quality ceramic ferrules,it has good conformity and low Insertion Loss. And it iswidely used intheTelecommunication Networks, DataTransmission,Test Equipment and the LAN of CATV etc.
1. Feature
v Low insertion loss and high return loss;
v Good repeatability & interchangeability;
v PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
v Suitable for high-speed, high-capacity optical fiber transmission system;
v Provide single mode/ multimode patch cord and pigtails;
v Fiber diameter: ¦µ0.9mm, ¦µ2.0mm, ¦µ3.0mm;
v Length/Type: according to customers¡¯ demands.
2. Application
Ø Optical fiber communications system;
Ø Optical fiber access networks;
Ø Optical fiber CATV;
Ø Optical fiber test equipments;
Ø Optical fiber data communication;
1.Technical parameters
No. | Item | Unit | Single Mode | Multi Mode | ||
1 | Insertion loss | dB | ¡Ü0.3 | ¡Ü0.3 | ||
2 | Return loss | dB | PC | UPC | APC | / |
¡Ý45 | ¡Ý50 | ¡Ý55 | ¡Ý45 | |||
3 | Repeatability | dB | 0.1 | |||
4 | Working Times | Times | ¡Ý1000 | |||
5 | Operating Temperature | ¡æ | -40~85 | |||
6 | Optical Cable Diameter | mm | §¶0.9,§¶2.0,§¶3.0 |
2.3D Specification
Item | PC Polishing | APC Polishing | Schematic Diagram | ||
Ferrule Diameter(mm) | 2.5 | 1.25 | 2.5 | 1.25 | |
Radius of Curv(mm) | 10~25 | 7~25 | 5~15 | ||
Fiber Height(um) | -100~50 | ¡À50 | |||
Apwex Offset(um) | ¡À50 | ¡À50 |
