Product requirements：

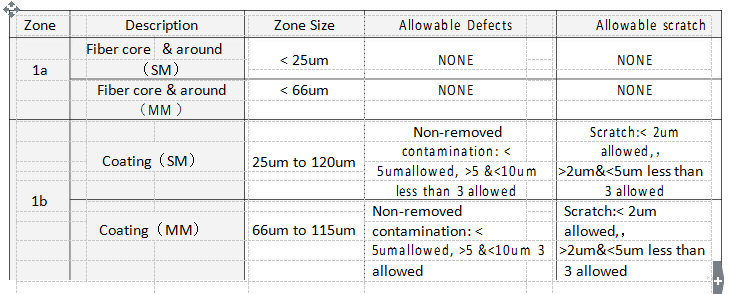

1. End-face：

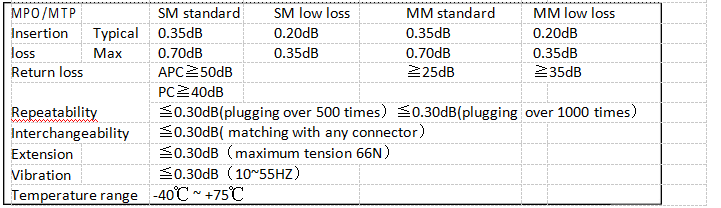

Parameters：

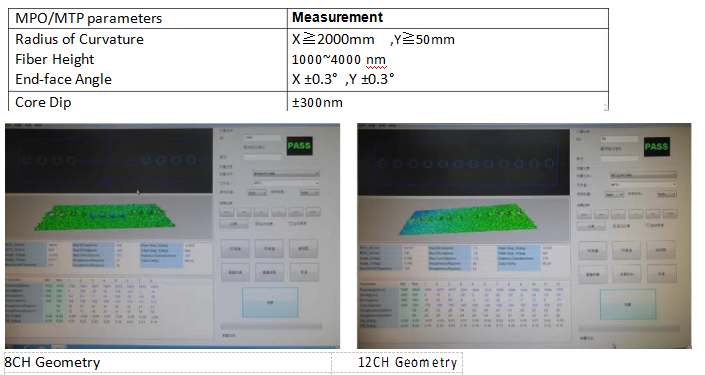

Geometry Parameters：

Length Tolerance：

Features：

◆Specified and standardized in IEC61754-7 and GR-1435-CORE

◆Easy Moves, Adds and Changes due to scalability and modularity of the product design

◆8/12/24 cores for single MTP/MPO connector, 96 LC points contained by 1U rack to save layout space, reduced down-times and faster installation

◆Variety choice for fiber type and cable type to ensure customized requirements

◆The push-pull interlock with sliding sleeve and two alignment pins are meant to position the MPO connector exactly for more than 1000 insertion cycles

◆Be the first choice for ITS (Information Telecommunication System) in high speed commercial buildings and data center

◆Used for parallel optics applications such as Infiniband with data rates up to 120 Gb/s and for the upcoming 40 Gb/s and 100 Gb/s Ethernet protocols via Multimode OM3, OM4 and OS2 fiber

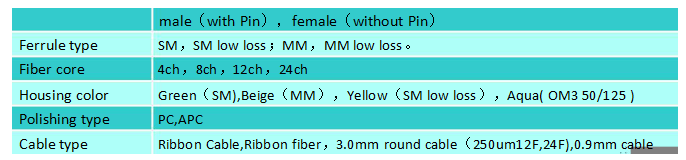

Type：
