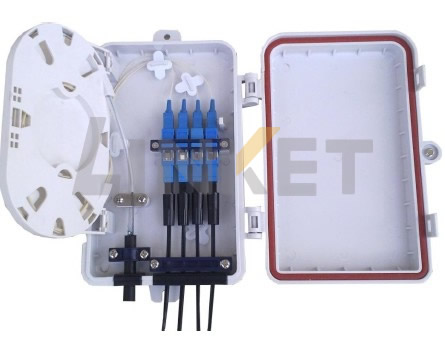

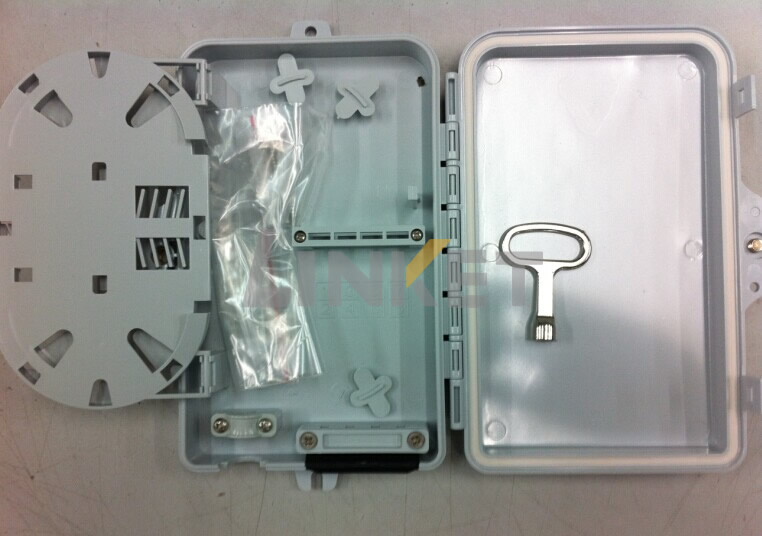

Features:

1). Total enclosed structure, be in nice shape

2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Specification:

1). Environmental Requirement

Working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

Atmospheric pressure：70KPa～106Kpa 2). Main Technical Data

Insertion loss：≤0.2dB

UPC return loss：≥50dB

APC return loss：≥60dB

Life of insertion and extraction：＞1000 times 3). Thunder-proof Technical Data

The grounding device is isolated with the cabinet, isolation resistance is no less than 2x10⁴MΩ/500V

(DC); IR≥ 2x10⁴MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover; U≥3000V

Configuration table:
