Female to Male

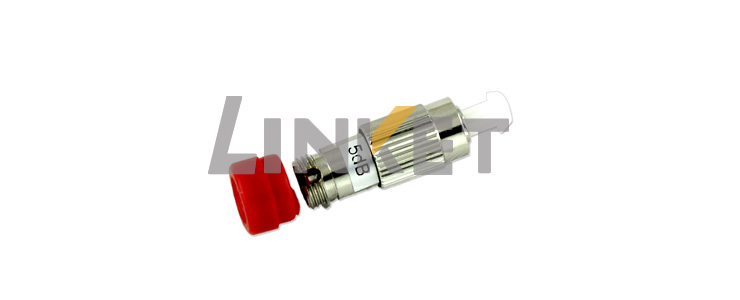

FC/UPC Female to Male 5dB Attenuator
- TEL: +86 519-86221538
- Skype: +86 15995090105
- E-mail: william@linketchina.com
Features
▪ Good for High power source
▪ Light weight
▪ Small volume
▪ High precision
▪ Good stability
▪ A variety of forms, and it is easy to use
Applications
▪ Telecommunication
▪ Local area network
▪ CATV,FTTH
▪ Fiber optic sensors
▪ EDFA loop tests and measurements
▪ Optical transmission system
▪ Testing instruments
| Attenuation value | 1 3 5 10 15 20 25 dB |
| Attenuation precision | <5dB¡À0.3dB <10dB¡À0.5dB >10dB¡À10% |
| Return loss | PC>45dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | <0.1dB |
| Operation temperature | -40¡ãC~+75¡ãC |
| Storage temperature | -40¡ãC~+85¡ãC |
| Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
