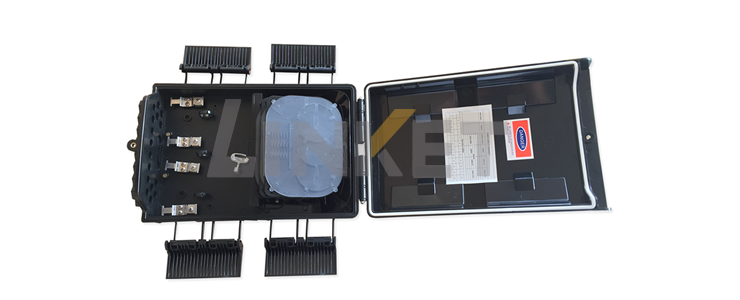

16-Core SC/APC Blockless Wall-mounted PLC Splitter Up-Down
- TEL: +86 519-86221538
- Skype: +86 15995090105
- E-mail: william@linketchina.com
Features
Ø Total enclosed structure, be in nice shape
Ø Wet-proof, water-proof, dust-proof
Ø Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

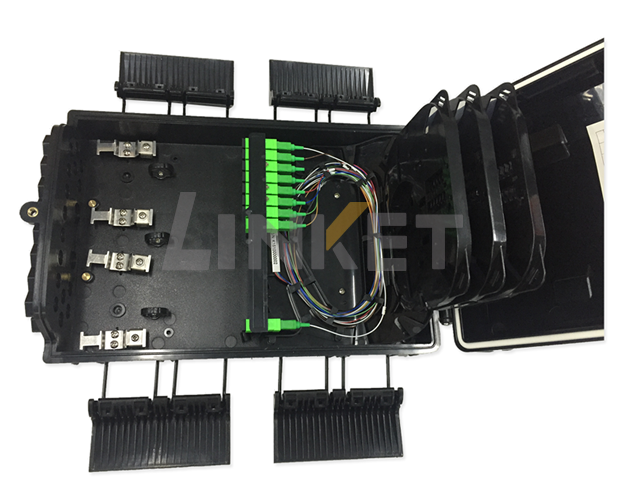

Ø Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance
Ø Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Ø Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses
| Environmental requirement | Working Temperature:-40℃~+85℃ |
| Relative humidity:≤85%(+30℃) | |
| Atmospheric pressure:70Kpa~106Kpa | |
| Main technical datasheet | Insertion loss:≤0.2dB |
| UPC return loss:≥50dB | |
| APC return loss:≥60dB | |
| Life of insertion and extraction:>1000 times | |
| Thunder-proof technical datasheet | The grounding device is isolated with the cabinet,isolation resistance is less than 2×104MΩ/500V(DC); IR≥2×104MΩ/500V(DC) |
| The withstand votage between grounding device and cabinet is no less than 3000V(DC)/min,no puncture,no flashover;U≥3000V |
Model | Function | Structure Size | Full Capacity | Wall mounting dimensions（picture2） | Fiber input |
A*B*C(mm) | SC | D*E*F (mm) | |||
GFS-16M | Fiber/Splitter | 330*210*87 | 16 | 175.5*121*250 | Express port |
GFS-16N | Fiber/Splitter | 330*210*87 | 16 | 175.5*121*250 | Express port |
