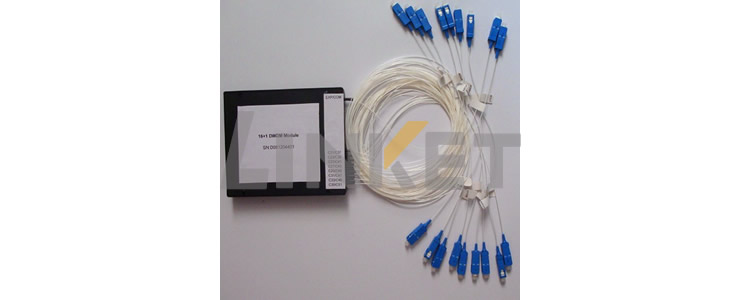

1x16 DWDM
- TEL: +86 519-86221538
- Skype: +86 15995090105
- E-mail: william@linketchina.com
Features
Based on thin film filter technology and high wavelength stability
Low polarization dependent loss and high channel isolation
Flat and wide passband
Compact size and upgrade port is optional
Epoxy free optical path and excellent reliability
Telcordia GR-1221-CORE qualified and RoHS compliant
Applications
Ø CWDM system
Ø CATV system
Ø Telecommunication network system
Ø Metro/Access networks
| Parameter | Unit | Value | |||||
| Channels Number | - | 2 | 4 | 8 | 16 | 32 | 40 |
| Channel Central Wavelength | nm | ITU-T Grid | |||||
| Passband@0.5dB | nm | ¡Ý0.3 | |||||
| Pass band | nm | ¦ËITU¡À0.11 | |||||
| Pass band Flatness | dB | ¡Ü0.5 | |||||
| Insertion Loss (Typ.) | dB | 1.2 | 2.0 | 4.2 | 9.0 | 16.8 | 20.5 |
| Insertion Loss (Max.) | dB | 1.4 | 2.6 | 5.0 | 9.8 | 19.4 | 24.2 |
| Adjacent Channel Isolation | dB | ¡Ý25 | |||||
| Non-adjacent Channel Isolation | dB | ¡Ý40 | |||||
| Return Loss | dB | ¡Ý50 | |||||
| Polarization Mode Dispersion | ps | ¡Ü0.10 | ¡Ü0.10 | ¡Ü0.10 | ¡Ü0.15 | ¡Ü0.15 | ¡Ü0.15 |
| Polarization Dependent Loss | dB | ¡Ü0.10 | ¡Ü0.15 | ¡Ü0.20 | ¡Ü0.25 | ¡Ü0.30 | ¡Ü0.30 |
| Directivity | dB | ¡Ý50 | |||||
| Operation Temperature | ¡ãC | -5~+70 | |||||
| Storage Temperature | ¡ãC | -40~+85 | |||||
| Package Dimension | mm | ABS box G: 100X80X10, H: 125X96X16 I: 141X115X18, O: customized | |||||
Note:
1. All parameters are for device without connectors.
2. Rack-mounted customization is available.
3. Special specifications can be customized according to customer requirements.
DWDM |
| / |
|
|
|
|
100GHz | Channel Number | Start Channel | Application Type | Fiber Type | Fiber Length | Connector |
02=2 CH | C21, C+21 | M=Mux | 09=900um | 0.5=0.5m | NA=None |
