Wall-mounted Box
16-Core SC/APC Blockless Wall-mounted PLC Splitter
- TEL: +86 519-86221538
- Skype: +86 15995090105
- E-mail: william@linketchina.com

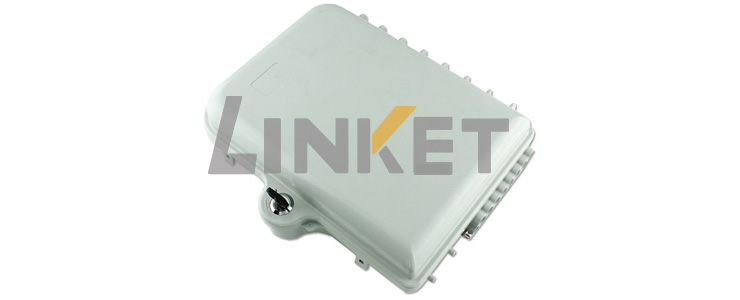

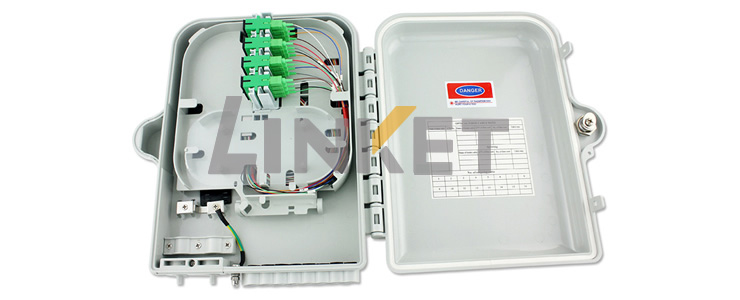

Fiber Optic Terminal Box is widely used in FTTH, CATV, LAN and WLAN project
Features
Ø High-quality ABS with standard interface
Ø Maximum Capacity: up to 1*16 PLC Splitter or 16 cores input and 16 cores output
Ø In accordance with IP65
Ø Wall Mountable and Derrick Mountable
| Model | Size (Length*Width*Height) | No.of Input | No.of Output | Input/output Hole Size(mm) | MaximumCapacity | Note |
| 8/16 | 300*220*80 | 2 | 16 | Input¦µ12,Output | 16 cores | ABS Box,can be fitted with 16pcs |
| Item | Specs | Total Q¡®ty of Splitter | Carton Size(cm) | Gross Weight per Piece(kgs) |
| WALL-mounted PLC splitter with blockless type in it | 1x8 | 10 | 60*37*51 | 1.32 |
| 15 | 81*36*52 | |||
| WALL-mounted PLC splitter with blockless type in it | 1X16 | 10 | 60*37*51 | 1.37 |
| 15 | 81*36*52 |
